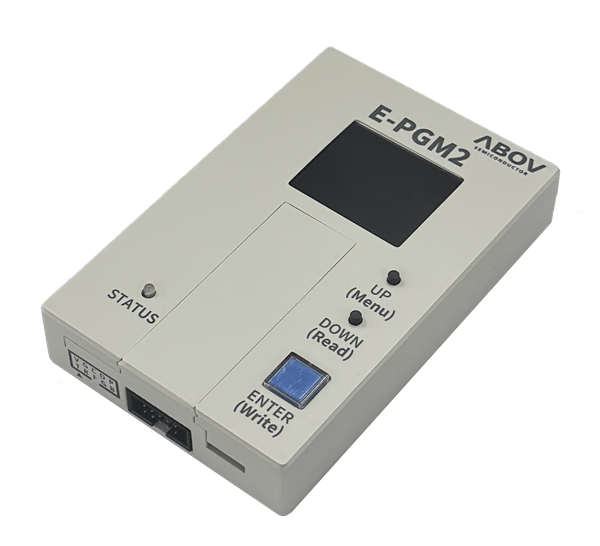

E-PGM2 is ABOV’s representative programmer, designed to support all ABOV 8-bit and 32-bit microcontrollers. It offers flexible hardware interfaces — an optional 40-pin ZIF socket with chip-specific socket adapter and a 10-pin ISP connector supporting OCD, SWD, UART, and SPI — making it suitable for both socket programming and in-system programming environments.

E-PGM2 operates in Host mode, connected via USB Type-C cable to the E-PGM software, and Standalone mode for PC-free, on-board programming. Standalone mode also supports portable DC power, making E-PGM2 convenient to use in field support environments where a PC connection is not available.

E-PGM2 supports GANG mode, wiring up to 8 units together to program multiple target devices in parallel with a single Start signal, increasing programming throughput and reducing production time.

Built-in checksum verification ensures reliable, consistent quality. E-PGM2 delivers efficient programming on the production line.

功能

◾Supports all ABOV 8-bit and 32-bit microcontrollers
◾Multiple hardware interfaces for mass-production programming via
　- 40-pin ZIF socket for chip-specific adapter connection (optional)
　- 10-pin ISP connector for OCD, SWD, UART and SPI interfaces
◾USB full speed, Bulk transfer interface
◾Host mode
　- USB Type-C cable for PC connection
◾Standalone mode
　- On-board programming by push button
　- Up to 8 MB firmware storage
　- Portable operation via external battery charger connectio
◾Power output to the target board via
　- VDD: 2.5 to 5.5 V (max. 200 mA)
　- VPP: 2.5 to 9.0 V (max. 50 mA)
◾Single two-color LED for status indication
◾160 x 128 pixel 16-bit TFT LCD display
◾Two push buttons for option selections
◾Operating Voltage: USB 5 V/2 A
◾Dimension
　- 80 x 125 x 26 mm
　- 80 x 125 x 33 mm (/w ZIF socket)
